MPJ-K-F面板安裝式高品質熱電偶插座,MPJ-K-F美國Omega面板式高品質熱電偶插座,K型分度號,黃色高品質熱電偶插座。
MPJ-K-F面板安裝式高品質熱電偶插座的詳細介紹

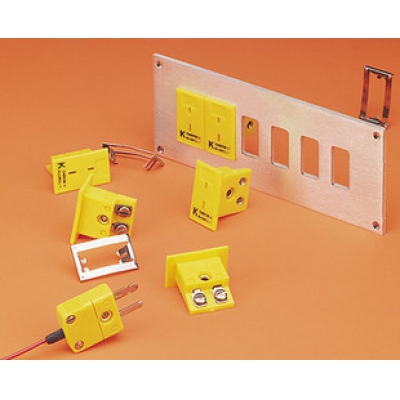

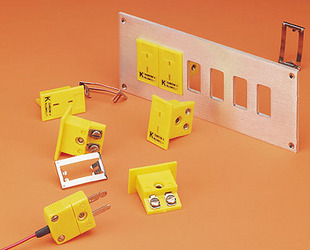

The MPJ Miniature Panel Jack requires less than half of the panel area required by the Standard Size connectors. A simple push-on clip is all that is required to retain the connector in a rectangular cutout,
or the optional MSS snap strip can be used to mount a row. Angled terminal screws allow wiring to be done after panel assembly.
MOUNTING DIMENSIONS
8.1 x 16.7 mm 0.32 x 0.66"
Cutout Required
14.3 mm 0.56"
Centers Horizontally
23.8 mm 0.94"
Centers Row to Row Minimum
For complete product specifications see the Related Links section at the bottom of this page.
MPJ-K-F面板安裝式高品質熱電偶插座|MPJ-K-F美國Omega面板安裝式等溫插座
|
Part Number |
Description |
|
MPJ-K-F |
Female miniature panel jack with type K calibration |
|
MPJ-T-F |
Female miniature panel jack with type T calibration |
|
MPJ-J-F |
Female miniature panel jack with type J calibratio |
|
MPJ-E-F |
Female miniature panel jack with type E calibration |
|
MPJ-R/S-F |
Female miniature panel jack with type R/S calibration |
|
MPJ-G-F |
Female miniature panel jack with type G calibration |
|
MPJ-C-F |
Female miniature panel jack with type C calibration |
|
MPJ-D-F |
Female miniature panel jack with type D calibration |
|
MPJ-U-F |
Female miniature panel jack with Uncompensated or type B calibration |
|
MPJ-N-F |
Female miniture panel jack with type N calibration |
|
MPJ-CAP-12 |
Dust caps, pkg of 12. Other pkg sizes available |
|
MH-MPJ-10 |
Extra Mounting Clips, pkg of 10. Other pkg sizes available |
|
1-12S |
Extra ID number labels for 1 thru 12. Also available for other number series. |
